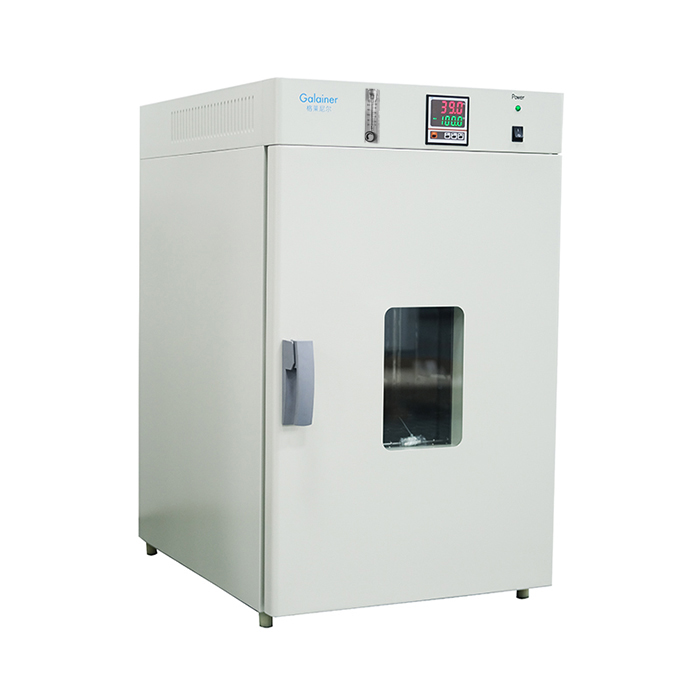

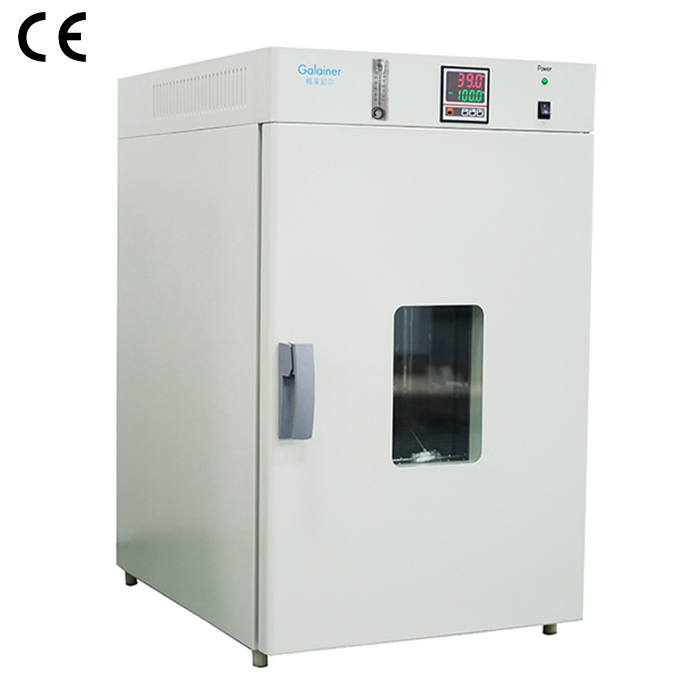

Cabinet structure

(1) The oven is composed of a box, a heating system, an electrical control system, an air supply system and a protection system.

(2) The shell of the box is galvanized sheet with baking paint, and the studio material is 304 stainless steel, and the overall design is beautiful and generous

(3) The height and number of brackets can be adjusted at will

(4) The insulation between the studio and the outer box is made of aluminum silicate rock wool insulation material, and the thickness of the insulation layer is 100mm

Air supply ducts

The heat of the electric heater placed in the back of the box is discharged forward through the side air duct, and then sucked in by the centrifugal wind wheel on the back after the dry material to form a reasonable air duct, which can make the hot air fully convection, make the temperature in the box reach uniformity, improve the ability of air flow heating, and greatly improve the temperature uniformity of the oven

Temperature control system

Imported digital intelligent temperature controller, constant temperature control mode, PID automatic calculation, temperature control accuracy ±0.2°C, with sensor disconnection alarm function, over-temperature suppression, overshoot function, accurate temperature control, low overshoot, over-temperature alarm protection function, to ensure the safety of product operation.

Nitrogen filling device

The equipment is equipped with a nitrogen flow meter, which is convenient for filling nitrogen and controlling the nitrogen flow

Electric heating system

The electric heater is heated by black heat generator, long service life, safe and stable, with a baking life of > 10,000 hours, and the electric heater is made of stainless steel sleeve, filled with high insulation modified magnesium oxide, fast heat conduction, no leakage, no open flame, to ensure safe and reliable use.

Electrical safety

The electrical control components are all made of famous brands, reasonable wiring, safe and reliable

Security protection system

(1) Over-temperature alarm (2) Over-current protection (3) Fast fuse (4) Grounding protection

(1) Programmable LCD controller: the heating rate and holding time can be adjusted

(2) Independent temperature limiting controller: the power supply can be cut off immediately when the equipment temperature rises

      too high after the main controller fails

(3) Paperless recorder: import its recorded data into the computer for analysis, printing, etc. through the USB interface

(4) RS485 communication interface: it can be connected to the computer to realize real-time monitoring of its working status
