400 8483 886| Basic parameters | |

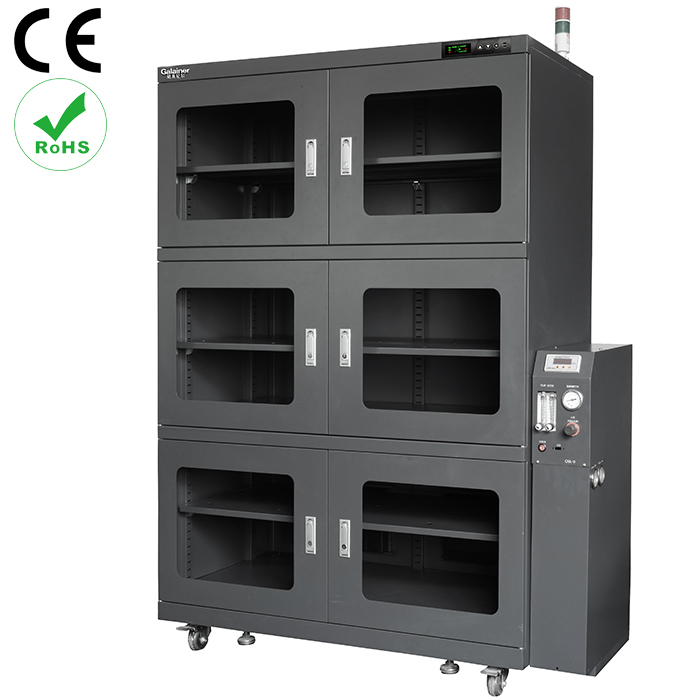

| Product branding | Galainer |
| Product model | GNC1435DZF-6 |
| Humidity range | 1%-60%RH |
| Dimensions | 1200(W)*700(D)*1860(H)mm |
| Internal dimensions | 1155(W)*650(D)*1680(H)mm |
| Number of shelves | 5 pieces |
| Supply voltage | 220V-50Hz |
| Average power | 40W |
| Nitrogen production | ≥13L\min |
| Nitrogen concentration | 98%-99.99%RH |
| Cabinet structure | |
| Cabinet design and material: The cabinet body is made of 1.2mm high-quality galvanized sheet, the cabinet body is designed with high-strength structure, good load-bearing performance, no air permeability, excellent sealing performance, and 360-degree rotating brake casters are installed at the bottom for easy movement and fixation. | |
| Structure: 5mm anti-riot tempered glass, double-layer door frame structure, smooth and beautiful, with anti-theft door lock, with insurance function, and equipped with magnetic sealing strip for refrigerator to ensure excellent sealing performance of the box. | |
| Load-bearing laminate: In order to ensure uniform air humidity in the box, each laminate has a porous flow to facilitate air convection, and the laminate adopts a reinforced structural design, with high strength and heavy load, and the layer height gap can be adjusted at will according to the height of the items, so that the storage of items is more convenient and the space utilization rate is higher. |
| Control system | |
| Control mode: fully automatic, microcomputer fully automatic operation | |
| Temperature and humidity sensor: using the original honeywell brand imported temperature and humidity sensor from the United States, the error is less than ±3%RH, and the annual drift is 0.3% | |
| Temperature display range: -9°C~99°C, accuracy ±1°C. Humidity display range: 0%~99%R. accuracy±3%RH | |
| Additional functions of digital display: the humidity setting has a memory function, no need to reset it after power failure, and it can also display the working status of the equipment, which is convenient for troubleshooting | |
| Nitrogen control system: solenoid valve and flowmeter are used to control the nitrogen inlet and inlet flow, and the intake volume of the flowmeter is controlled at 0-50L/min, which is fully automatic and does not require manual operation | |
| Nitrogen production principle: it uses a high-efficiency, highly selective solid adsorbent - coke molecular sieve selective adsorption of nitrogen and oxygen this characteristic, the oxygen and nitrogen in the air are separated, coke molecular sieve is a polar molecule, preferential adsorption of oxygen, carbon molecular sieve on the separation of oxygen and nitrogen is mainly based on the diffusion rate of these two gases on the surface of the carbon molecular sieve is different, smaller diameter gas (nitrogen) diffusion is slower, less into the solid phase of the molecular sieve, so that the gas phase can get full enrichment of nitrogen. After a period of time, the adsorption of oxygen by the molecular sieve reaches equilibrium, and according to the different adsorption capacity of the adsorption gas under different pressures of the carbon molecular sieve, the pressure is reduced to make the carbon molecular sieve remove the adsorption of oxygen, and this process becomes regeneration. Pressure swing adsorption typically uses two columns in parallel, alternating pressurized adsorption and decompression regeneration to obtain a continuous stream of nitrogen. | |
| Air inlet pressure: The optimal compressed air inlet pressure is between 0.7-0.8MPa | |
| Optional items | |
(1) Anti-static function of the box (2) Lighting in the box (3) Stainless steel cabinet (4) RS485 communication interface (5) Over-humidity alarm device (6) Electronic dehumidification device (7) Nitrogen concentration display device |
